Geberit PE SuperTube Hydraulically optimised drainage for high-rise buildings
All the components of the Geberit PE SuperTube system are designed to work together perfectly, allowing space-saving waste water installations in high-rise buildings.
Geberit PE SuperTube eliminates the need for a parallel ventilation pipe, creating more residential and floor space.
Using smaller diameter pipes allows smaller pipe ducts while still maintaining a high discharge capacity of 12 l/s when using pipes with d110.
Geberit SuperTube quick overview Here’s how the drainage system works
Conventional drainage systems in high-rise buildings generally require a lot of space for pipes with d160 and additional secondary ventilation pipes with d90. There also needs to be enough space below ceilings for horizontal pipes to have the correct slope. The discharge capacity of a conventional system is 12.4 l/s.

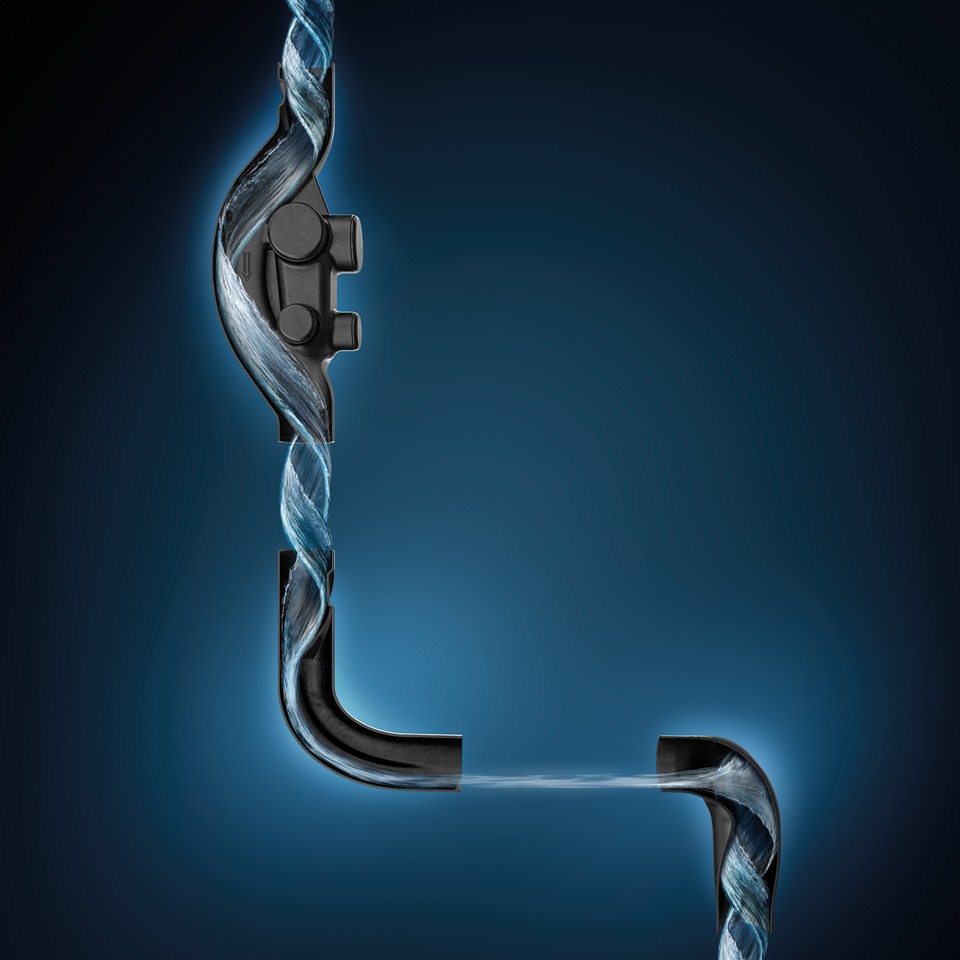

The hydraulically optimised Geberit SuperTube drainage system requires less room, creating additional living and working space. Geberit SuperTube technology creates a continuous column of air in the discharge stack. This allows the stack to reach a discharge capacity of 12 l/s with smaller pipes d110 and without any additional secondary ventilation. Horizontal pipes can be installed without a slope for up to 6 metres.
More peace – more comfort With Geberit Silent-db20
Peace and quiet is precious. Geberit Silent-db20 SuperTube is a space-saving drainage system for high-rise buildings that meets strict sound insulation requirements.
It minimises disturbing noises for neighbours and ensures maximum living comfort.
Useful planning tools for Geberit PE SuperTube
Geberit ProPlanner
You can use Geberit ProPlanner to convert a conventional drainage system into a Geberit SuperTube system in just a few steps. Geberit ProPlanner automatically replaces standard branches and bends with SuperTube fittings from Geberit PE.
Geberit BIM Plug-in
The Geberit BIM Plug-in for Autodesk® Revit® is an integrated tool that brings all Geberit planning and calculation tools for Autodesk Revit together in an integrated application.
BIM content for Geberit PE SuperTube fittings is also available in the catalogue module.

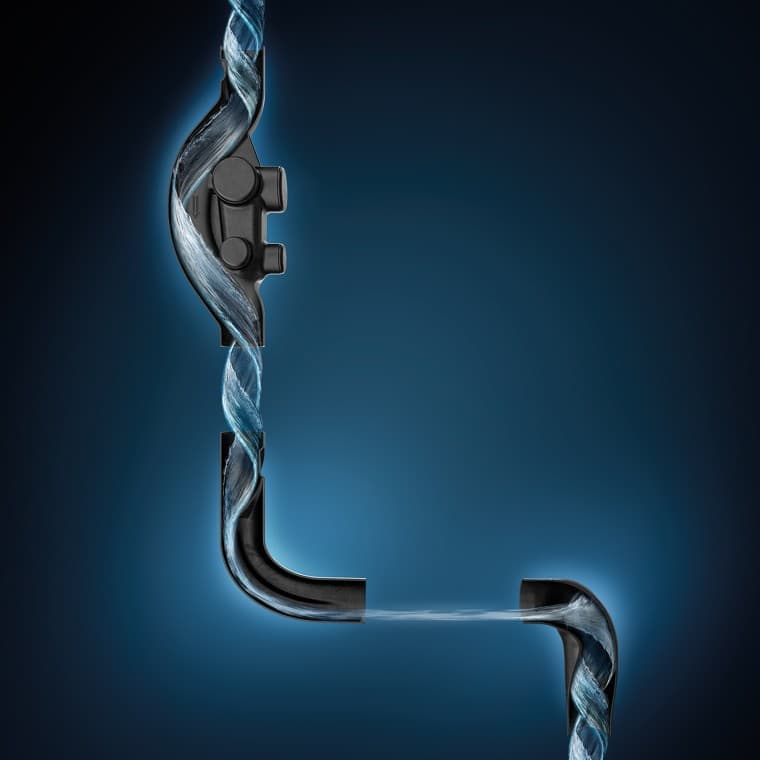

Geberit PE SuperTube hydraulically optimised fittings
Do you have any questions? We are happy to help you.
Our specialists advise planners, plumbers and other professionals on their projects. They will be happy to advise you on how to best master your current challenges with our products.
Explore similar content
Geberit PE
Geberit PE is suitable for a wide range of drainage applications in technical building systems and industry thanks to its shockproof properties and resistance to chemicals.
Geberit Silent-db20 SuperTube
Geberit Silent-db20 SuperTube is designed for drainage in high-rise buildings. It meets strict sound insulation requirements, saves space and boasts a high drainage performance of 12 l/s.

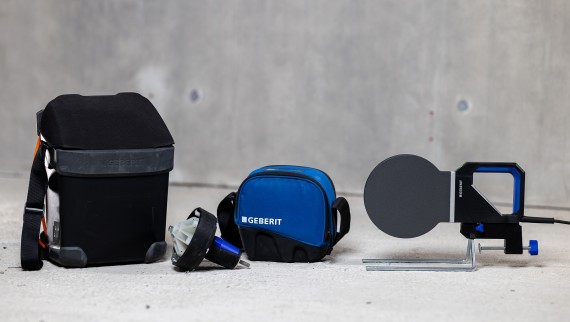

Geberit tools for drainage systems
